50kVA Standby Power SDEC Genset Soundproof Engine By 4 Cylinder In
Line.Dellent Power supply the standby power 50kVA water cooled diesel
generator with SDEC brand diesel engine model4HT4.3-G21. The water cooled diesel generator with rated output 56kVA /45kW,
standby power63kVA /50kW.
1: Efficient and energy-saving: Diesel engines have higher thermal
efficiency than gasoline engines, allowing for more efficient use
of fuel;
2: Strong load capacity: Diesel engines have high torque and can
work stably under high loads, making them suitable for power supply
of high-power equipment;
3: High reliability: The diesel engine has a simple structure, good
durability, and low maintenance cost;
4: High safety: diesel fuel is not flammable or explosive,
relatively safe;
5:Strong adaptability: Diesel generators can work under various
environmental conditions with strong adaptability.
50kVA Diesel Generator Powered by SDEC Diesel Engine:
| Model | DE-SC63 |
| Max. Power | kVA | 63 |
| kW | 50 |
| Rate Power | kVA | 56 |
| kW | 45 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 80.83 |
Specification of the Diesel Engine:
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. |
| Engine Brand | SDEC |
| Engine Model | 4HT4.3-G21 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged |
| Governor | Electric |
| Engine Max. Output Power | kW | 56 |
| Displacement | L | 4.300 |
| Starting Voltage | V | 24 |
| Bore | mm | 105 |
| Stroke | mm | 124 |
| Lubrication Oil Capacity | L | 11-13 |
| Compression Ratio | 17.3 : 1 |
| Intake Air Flow | M3/Min | N.A |
| Fuel Consumption at 100% Load | L | 12.8 |

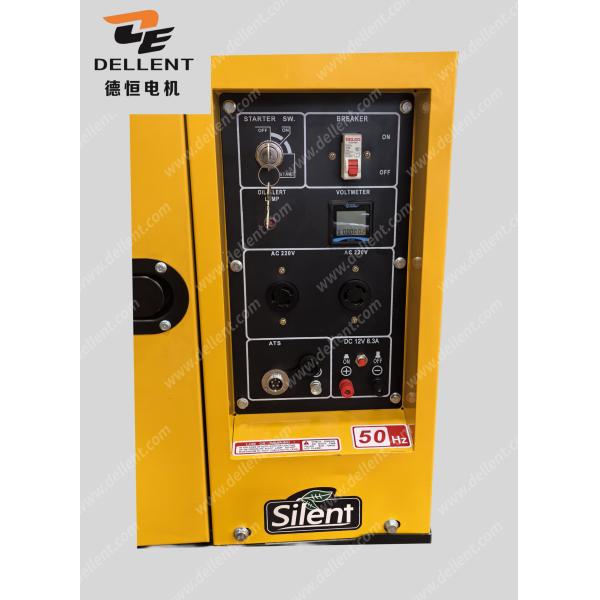

Specification of Automatic Control Panel:
| Controller Brand | ComAp |
| Breaker Brand | Delixi |
| Breaker Capacity | A | 63 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| Mains Monitor | Supply with DELLENT Function |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
1: The diesel generator should be placed in a well ventilated area
to ensure heat dissipation;
2: The diesel generators should regularly inspect and replace vulnerable parts
such as engine oil and air filter elements to ensure their normal
operation;
3: When running diesel generators, attention should be paid to the
quality and storage method of fuel, to avoid using inferior fuel or
improper storage that may cause malfunctions;
