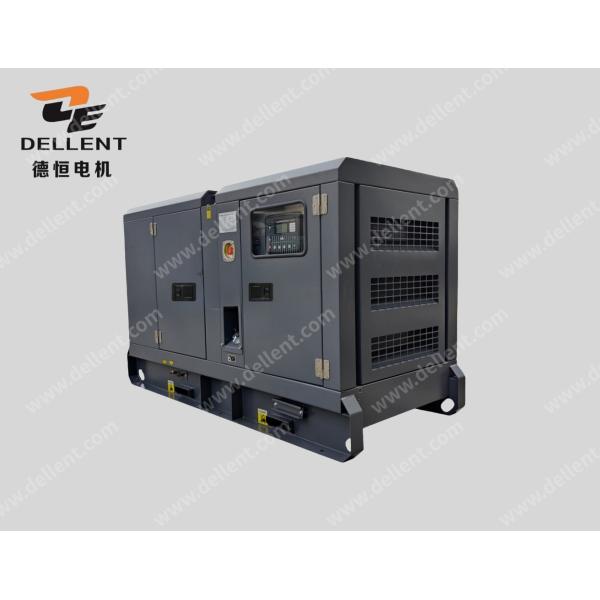

Yangdong YD380D Diesel Silent Generator 50Hz With 3 Cylinder In Line

50Hz YD380D silent of Ynagdong Diesel Generator

Ⅰ. PRODUCT DESCRIPTION

Product Introduce:
Yangdong diesel generator is China engine.
We have all series from 8kva to 71kva.

Advantage of our Yangdong diesel generator :

Yangdong diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.

1.Diesel generators are strong-built, ideal for emergency back-up,job sites and industrial appplications.

2.Powered by reliable air/water cooled diesel generators sets, industrial grade, great fuel efficiency, less maintenance, long operating life.

3.Strong technology and high-quality personnel, continuous innovation and perfect management.

4.Each generator will be packed in both strong and economic way tomake sure goods perfectly on delivery.

Details	GenSet Model	DE-YD9.5	Type	Silent(optional open)
	Frequency (Hz)	50	Speed rpm	1500
	Phase	3	Rated voltage	230v/380v/400v/415v
	Prime output	6.8kW/8.5kVA	Standby output	7.6kW/9.5kVA
	Prime output	6.8kW/8.5kVA	Standby output	7.6kW/9.5kVA
	Cylinder	3	Cooling system	Water
	Min specific fuel consumption at full load(g/kW.h)	≤260	Overall dimensions LWH(mm)	587474628
	Fuel Con.(L/H)	2.6	Fuel capacity tank	75L
	Running time (H)	8	Sound decibel	70DB-75DB
Details Engine	Brand	Yangdong
	Model	YD380D	Fuel	Diesel
	Cylinder	3	Cooling system	Water-cooling
	Cylider arrangemant	IN-LINE	Bore and Stroke(mm)	80×90
	Cyle	3 Staoke	Compression ratio	18.0:1
	Governor	Mechanical	Displacement(L)	1.357
Details Alternator	Brand	Stamford, Leroy Somer, Mecc Alte
	Model	PI 044D/TAL-A40-C/LSA 40 VS0/ECP28 1VS4C
	No.of bearings	1	Insulation class	H
	Wires	12	Ingress protection	IP23
	Excitation system	Shunt	Volrage	±1%
Optional single phase
Delivery date
Custom	30 working days after payment
